Photovoltaic glass curtain wall products can be widely used in building shading systems, building curtain walls, photovoltaic roofs, photovoltaic doors and windows and other photovoltaic power generation.High quality,strong applicability,good output efficiency, low light effect,etc.
| ELECTRICAL DATA(STC) | ||||

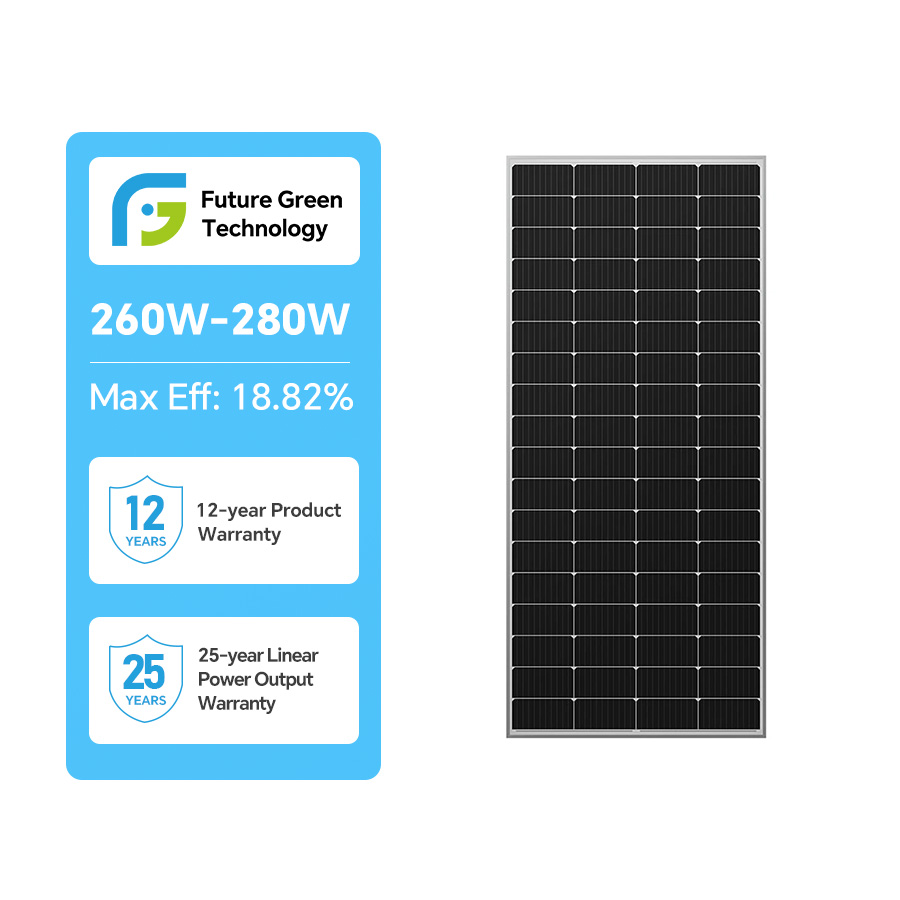

| Model Type | FG250M-72 | FG260M-72 | FG270M-72 | FG280M-72 |
| Peak Power(Pmax) | 250W | 260W | 270W | 280W |
| Maximum Power Voltage(Vmp) | 40.24 | 40.87 | 41.4 | 42.27 |
| Maximum Power Current(Imp) | 6.22 | 6.37 | 6.52 | 6.63 |
| Open Circuit Voltage(Voc) | 46.96 | 47.52 | 47.80 | 48.07 |
| Short Circuit Current(Isc) | 6.57 | 6.72 | 6.86 | 6.94 |
| Module Efficiency(%) | 18.82 | 19.57 | 20.32 | 21.08 |
| * STC: irradiance 1000 W/m2, AM 1.5G, and cell temperature of 25°C | ||||
Detailed Introduction
We support custom product packing accroing to your needs
Wooden Box Packing ,Pallet Packing ,Carton packing
About us
Future Green Technology is committed to creating a green future
Rooting ourselves in the new energy industry for decade,we manufacture high quality
solar panel and battery and win high reputation from hundreds customers globally
Production Process
Photovoltaic glass curtain wall products can be widely used in building shading systems, building curtain walls, photovoltaic roofs, photovoltaic doors and windows and other photovoltaic power generation.High quality,strong applicability,good output efficiency, low light effect,etc. Item No:FG-50W-01 Size: 680*365*25mm Weight:2.6kg Min order:10 pcs Lead time: 25days OEM:Available Original Region:China Maximum power:45W Panel Efficiency:21-22.5% Soalr cell :A-grad
УЗНАТЬ БОЛЬШЕ
Photovoltaic glass curtain wall products can be widely used in building shading systems, building curtain walls, photovoltaic roofs, photovoltaic doors and windows and other photovoltaic power generation.High quality,strong applicability,good output efficiency, low light effect,etc. Item No:FG-50W-01 Size: 570*540*25mm Weight:3.3kg Min order:10 pcs Lead time: 25days OEM:Available Original Region:China Maximum power:55W Panel Efficiency:21-22.5% Soalr cell :A-grad
УЗНАТЬ БОЛЬШЕ
Photovoltaic glass curtain wall products can be widely used in building shading systems, building curtain walls, photovoltaic roofs, photovoltaic doors and windows and other photovoltaic power generation.High quality,strong applicability,good output efficiency, low light effect,etc. Item No:FG-70W-01 Size :740*540*25mm Weight:4.2kg Min order:10 pcs Lead time : 25days OEM:Available Original Region:China Maximum power:70W Panel Efficiency:21-22.5% Soalr cell :A-grad
УЗНАТЬ БОЛЬШЕ
Photovoltaic glass curtain wall products can be widely used in building shading systems, building curtain walls, photovoltaic roofs, photovoltaic doors and windows and other photovoltaic power generation.High quality,strong applicability,good output efficiency, low light effect,etc. Item No:FG-90W-01 Size :800*580*30mm Weight:4.87kg Min order:10 pcs Lead time : 25days OEM:Available Original Region:China Maximum power:90W Panel Efficiency:21-22.5% Soalr cell :A-grad
УЗНАТЬ БОЛЬШЕ
Photovoltaic glass curtain wall products can be widely used in building shading systems, building curtain walls, photovoltaic roofs, photovoltaic doors and windows and other photovoltaic power generation.High quality,strong applicability,good output efficiency, low light effect,etc. Item No:FG-150W-01 Size :1080*705*30mm Weight:8kg Min order:10 pcs Lead time : 25days OEM:Available Original Region:China Maximum power:150W Panel Efficiency:21-22.5% Soalr cell :A-grad
УЗНАТЬ БОЛЬШЕ
Photovoltaic glass curtain wall products can be widely used in building shading systems, building curtain walls, photovoltaic roofs, photovoltaic doors and windows and other photovoltaic power generation.High quality,strong applicability,good output efficiency, low light effect,etc. Item No:FG-210W-01 Size :1580*705*35mm Weight:11.69kg Min order:10 pcs Lead time : 25days OEM:Available Original Region:China Maximum power:210W Panel Efficiency:21-22.5% Soalr cell :A-grad
УЗНАТЬ БОЛЬШЕ

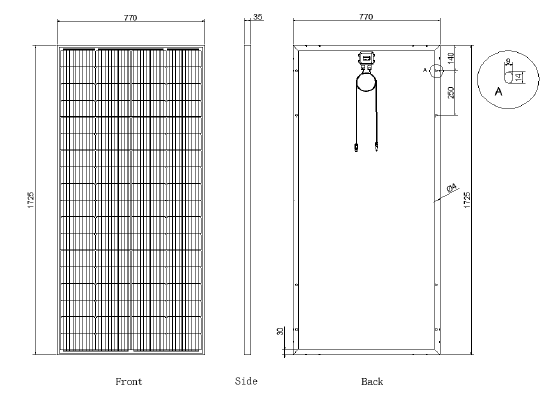

Photovoltaic glass curtain wall products can be widely used in building shading systems, building curtain walls, photovoltaic roofs, photovoltaic doors and windows and other photovoltaic power generation.High quality,strong applicability,good output efficiency, low light effect,etc. Item No:FG-260W-01 Size :1725*770*35mm Weight:13.95kg Min order:10 pcs Lead time : 25days OEM:Available Original Region:China Maximum power:260W Panel Efficiency:21-22.5% Soalr cell :A-grad
УЗНАТЬ БОЛЬШЕ
Photovoltaic glass curtain wall products can be widely used in building shading systems, building curtain walls, photovoltaic roofs, photovoltaic doors and windows and other photovoltaic power generation.High quality,strong applicability,good output efficiency, low light effect,etc. Item No:FG-300W-01 Size :1650*880*35mm Weight:15.44kg Min order:10 pcs Lead time : 25days OEM:Available Original Region:China Maximum power:300W Panel Efficiency:21-22.5% Soalr cell :A-grad
УЗНАТЬ БОЛЬШЕ
